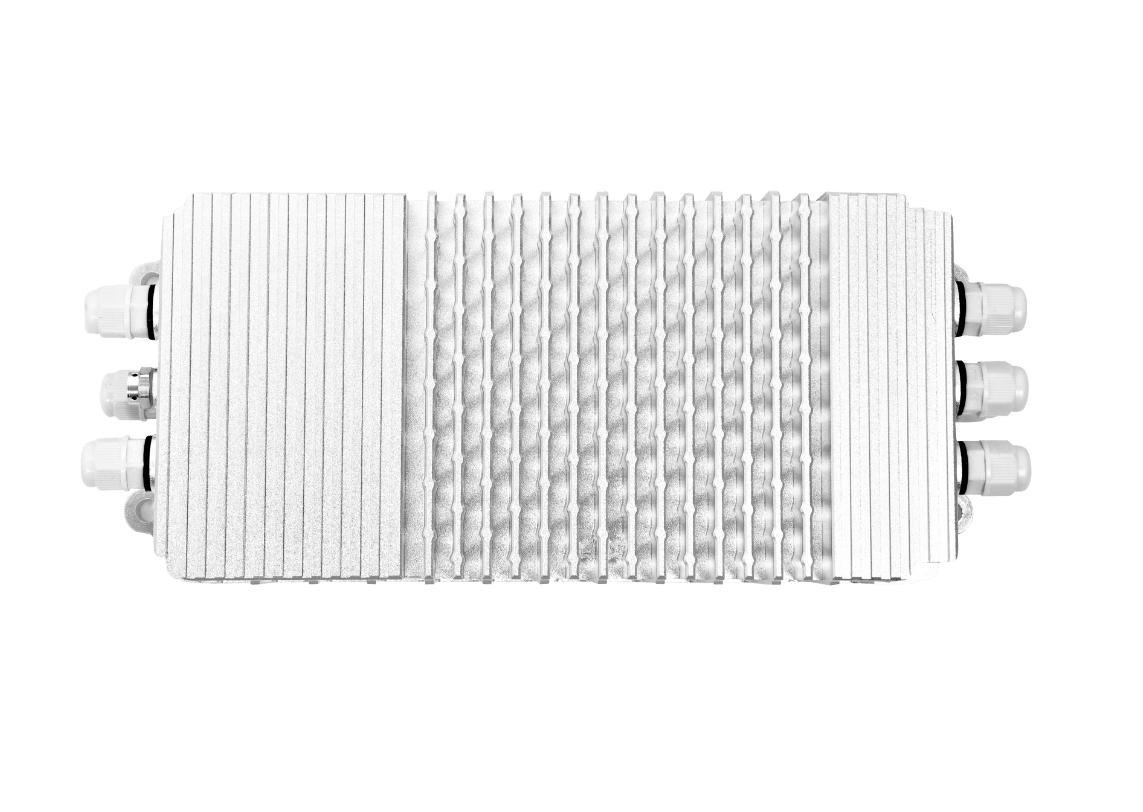

High Payload Drone Motor Controller
A lightweight, high-compute redundant controller engineered for safe, stable and efficient eVTOL UAV operation
Key Features
Aviation-Grade Safety
Redundant control architecture enables multi-channel propulsion assurance
High Computing Capability
Millisecond-level response for precise thrust and attitude control
Lightweight & Efficient Design
Low-loss power modules reduce system weight and flight energy consumption
Advanced Sensor Fusion
Supports IMU, GNSS, and vision systems for precise control integration
Specifications
Performance
Environment
Overall Unit
Parameter
Value
Performance
Operating Voltage Range
580–810 VDC (Typical Voltage: 700 V)
Peak Power
32kVA
Short-term Output Current (rms)
58A(60s)
Peak Efficiency
≥98%
Environment
Protection Class
IP67
Overall Unit
Dimensions (L × W × H)
212x104x62mm
Weight
≤1300g
