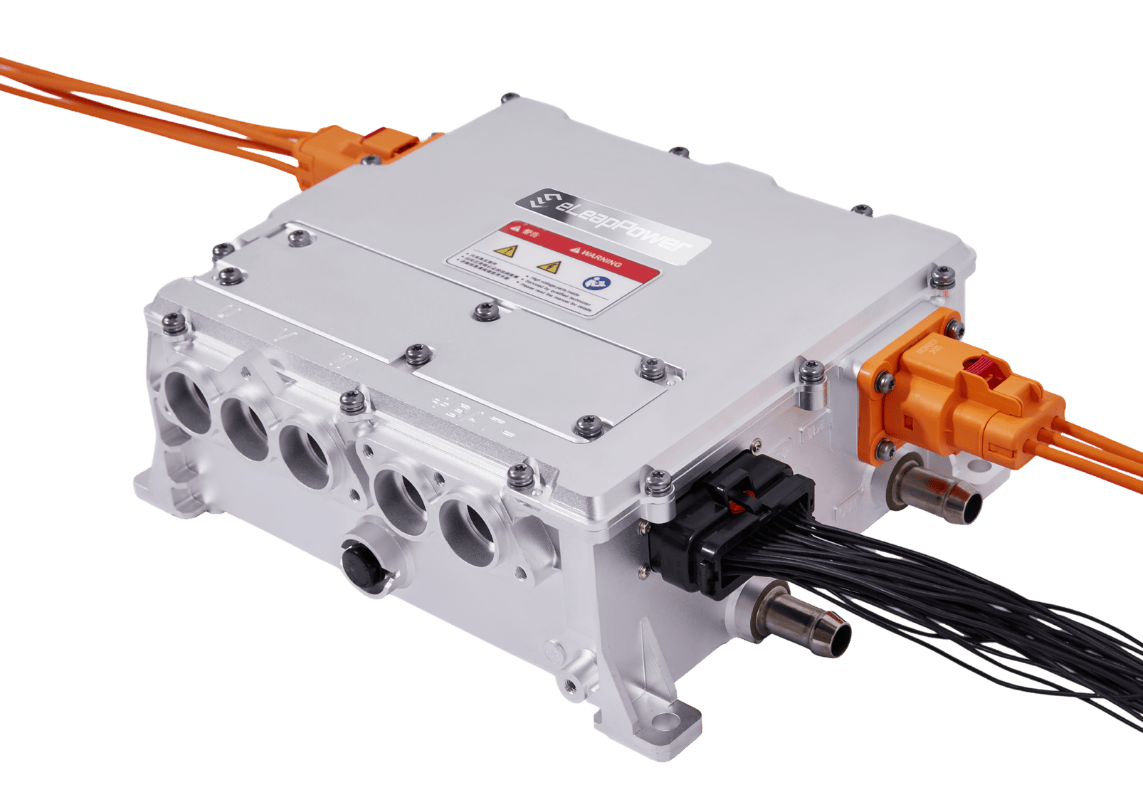

4-in-1 Motor Controller (3.3kW Charging)
A compact, efficient 4-in-1 solution tailored for light-duty applications
Key Features
Compact Integration
Space-saving design ideal for constrained vehicle layouts
Optimized Operation
3.3kW charging output meets light-duty cargo and urban delivery needs
Liquid Cooling
Water-cooled thermal management ensures stable performance under continuous full-load
Easy Maintenance
CAN communication and diagnostics simplify serviceability
Specifications
MCU
OBC
DC/DC
Overall Unit
Parameter
Value
MCU
Operating Voltage Range
240–430 VDC (Rated 336 VDC)
Peak Power
120 kVA
Peak Output Current (rms)
315 A (60s)
Peak Efficiency
≥98%
OBC
Input Voltage Range
176-264VAC
Input Voltage Range
16A
Output Voltage Range
240-430VDC
Maximum Output Current
12A
Rated Output Power
3.3kW
Maximum Efficiency
≥94%
DC/DC
Input Voltage Range
240–430 VDC (Rated 336 VDC)
Maximum Output Current
107.3A
Rated Power
1.5kW
Peak Power
1.8kW(128A 6min)
Peak Efficiency
≥92％
Overall Unit
Dimensions (L×W×H)
292x265x104mm
Weight
7.6kg
Application scenarios
