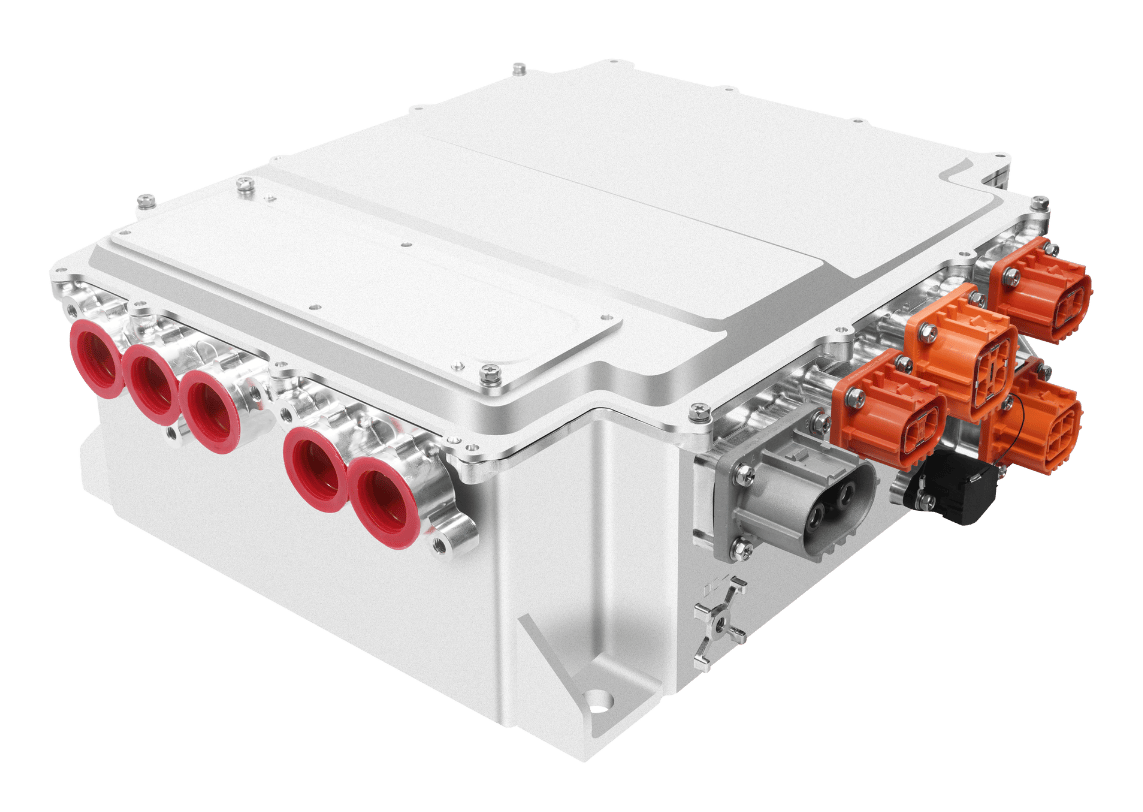

4-in-1 Motor Controller (6.6kW Charging)
High power-density 4-in-1 platform delivering performance and reliability for intensive applications
Key Features
Highly Integrated
Four-in-one system minimizes wiring complexity and packaging space
High Output
6.6kW charging designed for commercial applications and frequent stop-and-go logistics
Liquid Cooling
Water-cooled thermal management ensures stable performance under continuous full-load
Reliable and Durable
Automotive-grade protection supports long service life for commercial fleets
Specifications
MCU
OBC Charging
Vehicle-to-Load
DC/DC
Overall Unit
Parameter
Value
MCU
Operating Voltage Range
200–450 VDC (Rated 336 VDC)
Peak Power
120kVA
Short-term Output Current (rms)
310A(30s)
Maximum Drive Efficiency
≥98%
OBC Charging
Input Voltage Range
90-265VAC
Output Voltage Range
240-450VDC
Maximum Output Current
20A
Rated Output Power
6.6kW
Charging Efficiency
≥ 94% at rated input voltage, output voltage 300–450 V, full load
Vehicle-to-Load
Input Voltage Range
240-450VDC
Maximum Output Current (rms)
30A
Rated Power
6.6KVA
Inverter Efficiency
≥ 92% at rated output, at rated load and 50% rated load
DC/DC
Input Voltage Range
230–450 VDC (Rated 336 VDC)
Maximum Output Current
107.3A
Rated Power
1.5kW
Peak Power
1.8kW(128.7A 6min)
Maximum Efficiency
≥ 93.5%, weighted ≥ 92%
Overall Unit
Dimensions (L × W × H)
342x287x130mm
Weight
12.5±1kg
