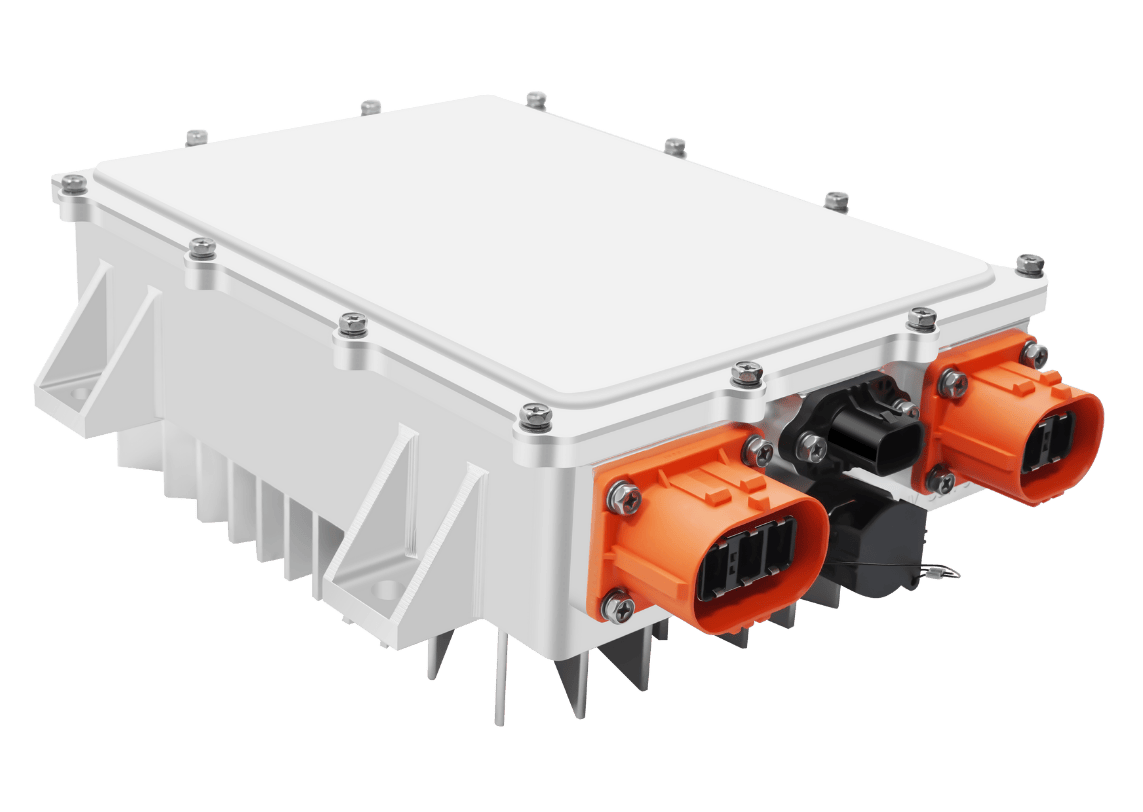

2-in-1 On-Board Charger (3.3kW)
A high-power fast-charge 2-in-1 solution enabling quicker, more stable energy replenishment for light EVs
Key Features
Faster Charging
3.3kW high-power output significantly reduces charging time for light vehicles
Integrated Design
2.2kW output ideal for daily commuter and utility vehicle charging needs
Smart Charging
Battery identification and adaptive charging profiles extend battery life
Robust Protection
Full electrical protection for high-performance platforms
Specifications
OBC
DC/DC
Overall Unit
Parameter
Value
OBC
Input Voltage Range
85-285VAC
Maximum Input Current
16A
Output Voltage Range
60–110 VDC (Rated 72V)
Maximum Output Current
46A
Rated Output Power
3.3kW
Charging Efficiency
Maximum ≥ 95 ± 1% (full load, rated input)≥ 85 ± 1% (> 30% load)
DC/DC
Input Voltage Range
60–110 VDC (Rated 72V)
Maximum Output Current
145A
Rated Power
2.0kW
Peak Efficiency
≥92±1%
Overall Unit
Dimensions(L×W×H)
240x180x98mm
Weight
5.5kg
