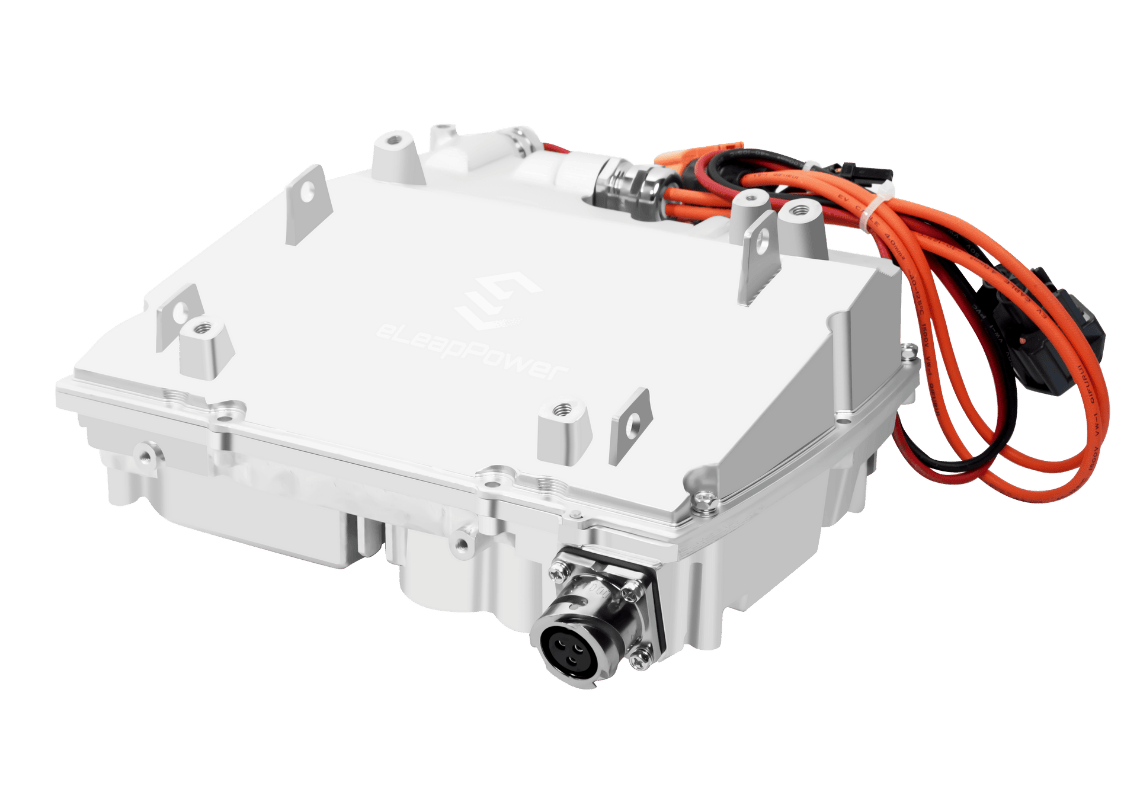

2-in-1 On-Board Charger (2.2kW)
A compact 2-in-1 system delivering fast, reliable, and safe charging for commuter and utility vehicles
Key Features
Highly Integrated
Charging and DC/DC converter in one compact module
Optimized for Daily Use
2.2kW output ideal for daily commuter and utility vehicle charging needs
Lightweight Structure
Optimized magnetic coupling reduces loss across a range of operating conditions
Layered Protection
Intelligent charging with comprehensive safety features
Specifications
OBC
DC/DC
Overall Unit
Parameter
Value
OBC
Input Voltage Range
85-285VAC
Maximum Input Current
15A
Output Voltage Range
65–120 VDC (Rated 102 V)
Maximum Output Current
27A
Rated Output Power
2.2kW
Charging Efficiency
Maximum ≥ 95 ± 1% (full load, rated input)≥ 85 ± 1% (> 30% load)
DC/DC
Input Voltage Range
65–120 VDC (Rated 102 V)
Maximum Output Current
45A@1s
Rated Power
420 W
Peak Power
1.2x rated power for 30s, 1.5x rated power for 1s
Peak Efficiency
≥92±1%
Overall Unit
Dimensions(L×W×H)
229x207x117mm
Weight
3~3.5kg
