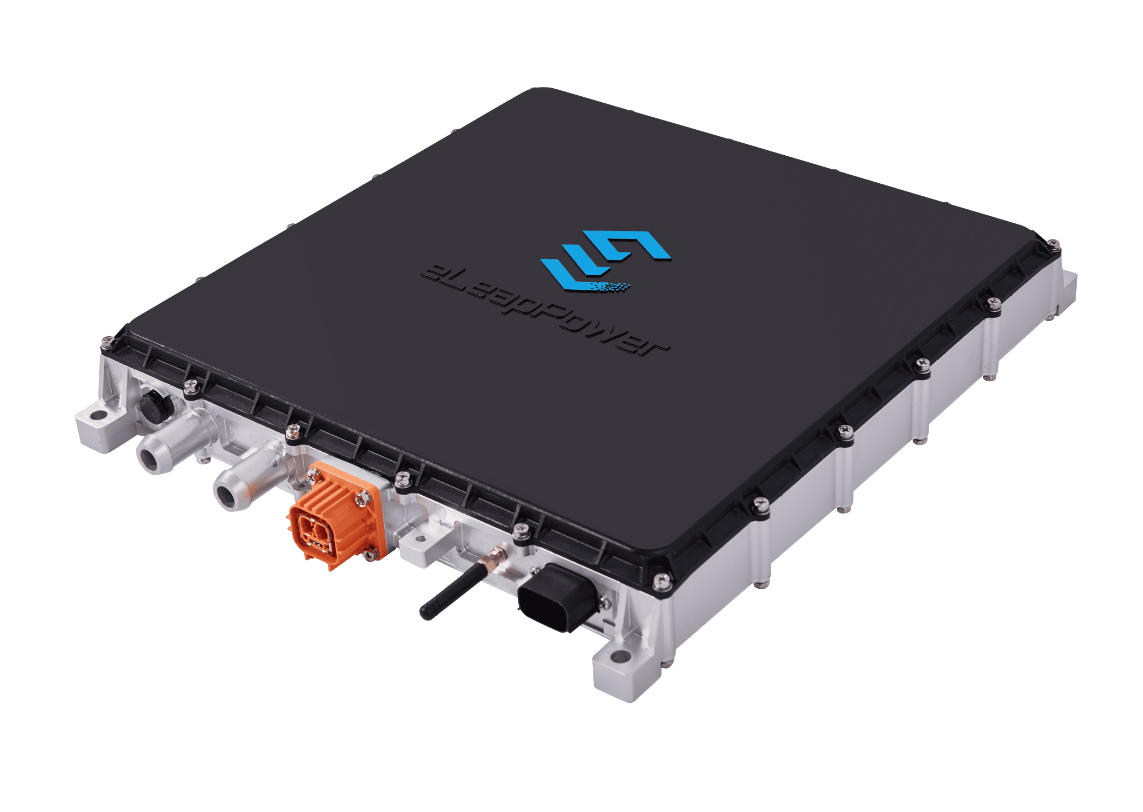

Wireless Charging
A high-power, high-tolerance wireless charging system enabling seamless EV charging in any environment
Key Features
High Power Capability
Supports multiple wireless charging power classes for residential and commercial settings
High Misalignment Tolerance
Wide positional tolerance with foreign-object detection for convenience and safety
High Efficiency
Optimized magnetic coupling reduces loss across a range of operating conditions
Scalable Deployment
Modular deployment suitable for homes, parking lots, and logistics hubs
Specifications
System
Ground Assembly
Vehicle Assembly
Parameter
Value
System
Ground Clearance
Z=140~210mm
Allowable Deviation Range
X±75mm ， Y±100mm
Rotation Angle
±10°
Tilt Angle
±5°
Ground Assembly
Input Voltage Range
Single-phase 85 ~ 264 VAC, three-phase 305 ~ 458 VAC
Protection Level
IP55
Protection Level
IP67
Vehicle Assembly
Output Voltage Range
200~500VDC, full power 305~500V
Output Current Range
40A
Rated Output Power
Single-phase 6.6 kW, three-phase 9.9 kW
Power Factor
≥0.99 at 50% or more of rated power output
Protection Level
IP67 /IP69K
