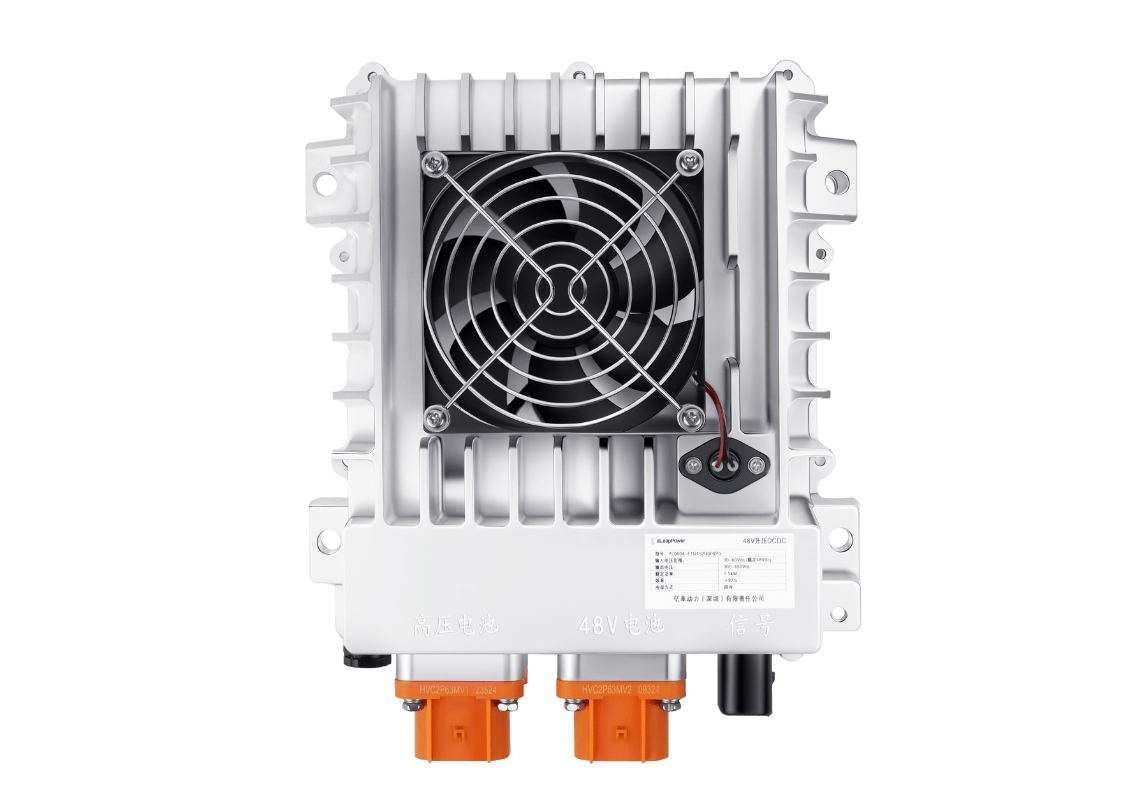

PV Boost MPPT + DC/DC
A high-efficiency solar energy solution enabling practical PV-assisted charging for passenger and commercial EVs
Key Features
High Conversion Efficiency
Precise MPPT maximizes solar energy utilization
Flexible Compatibility
Supports various rooftop PV module configurations
Efficient Boosting
High-efficiency DC/DC feeds solar power directly into the vehicle system
Safe & Intelligent
Full protections and remote monitoring for parked-charging scenarios
Specifications
PV DCDC
Overall Unit
Parameter
Value
PV DCDC
Input Voltage Range
30–60 VDC (Rated 48 VDC)
Output Voltage Range
250–450 VDC (Rated 360 VDC)
Output Current
≤ 6 A
Output Power
Rated 1.5 kW
Peak MPPT Efficiency
≥99%
Overall Efficiency
≥92%
Protection Level
IP67
Overall Unit
Dimensions(L×W×H)
245x200x96mm
Weight
3kg
